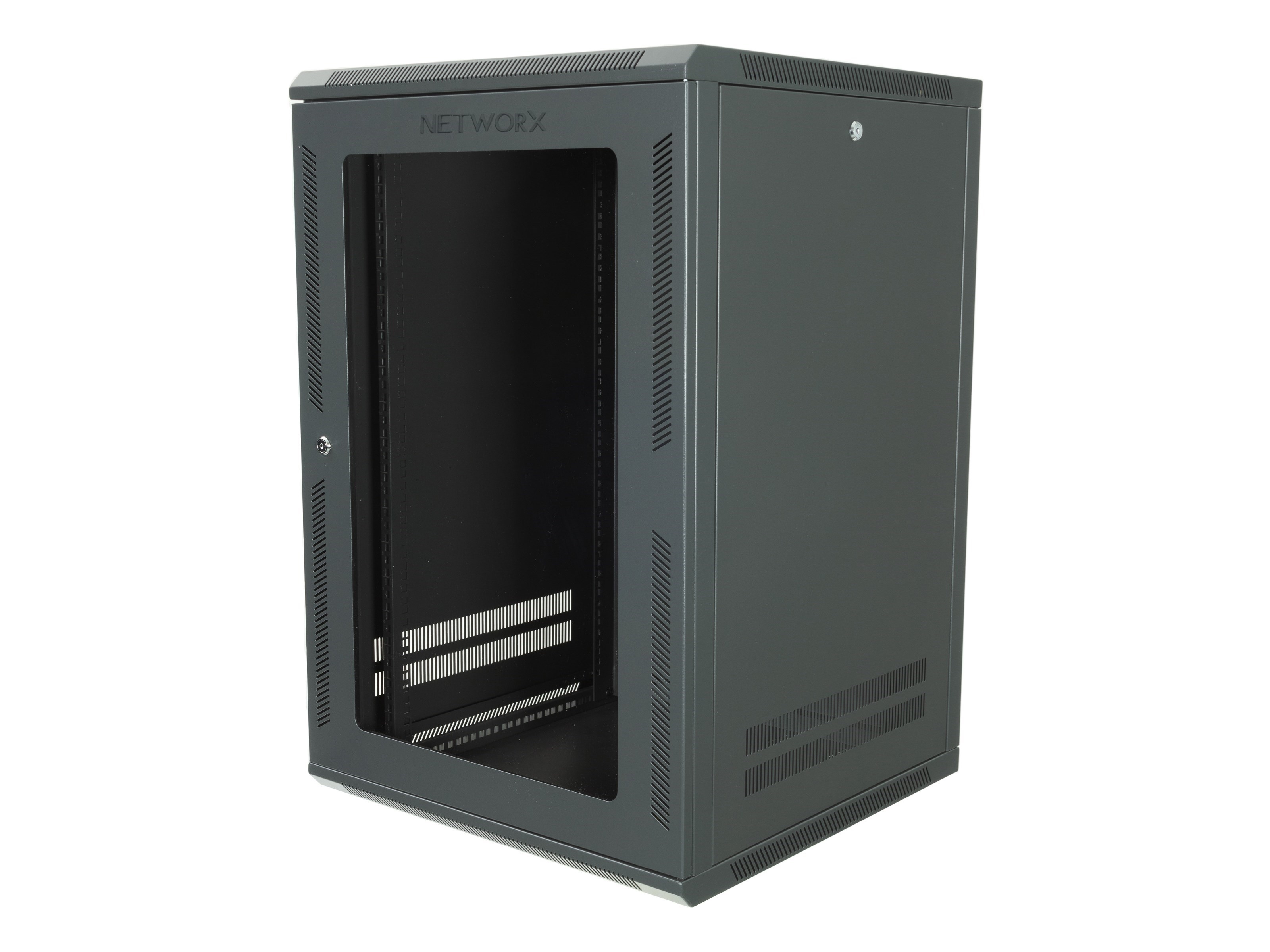

18U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed

RMU: 18U

$314.47

Qty:

Get organized with the 18U 201 Series of Wall Mount Cabinets from Networx®.

Write a Review

Manufacturer: Networx®

Availability: In stock

SKU: WMC-S201-18U

GTIN: 00845425023162

Get organized with the 18U 201 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

12 M6 Cage Nuts

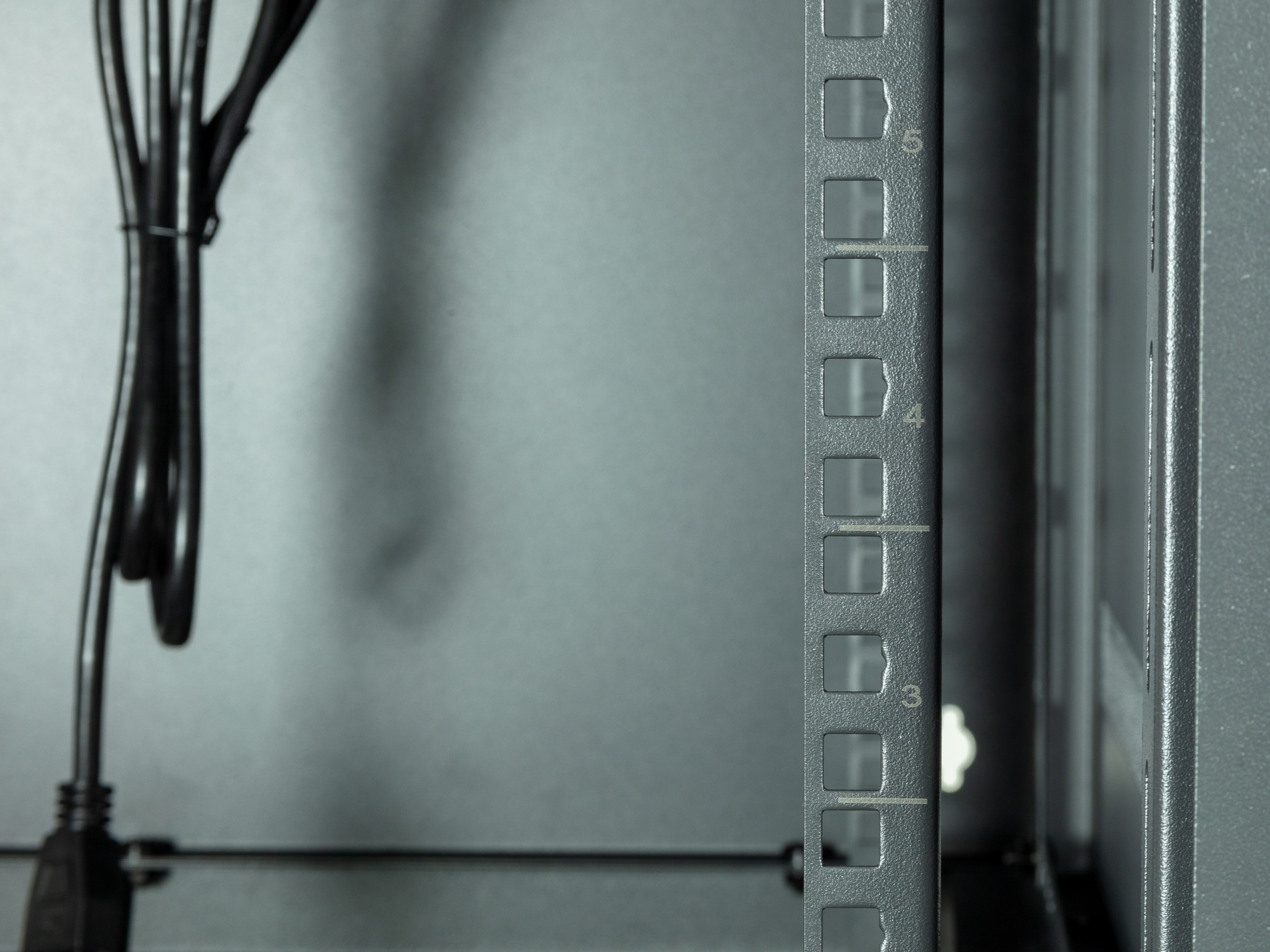

18U Rack Mount Units
External Dimensions: Height 39.6" x Width 24" x Depth 24"
Designed for equipment with a 19" mounting profile
Vented Top/Sides/Front Panels for adequate airflow

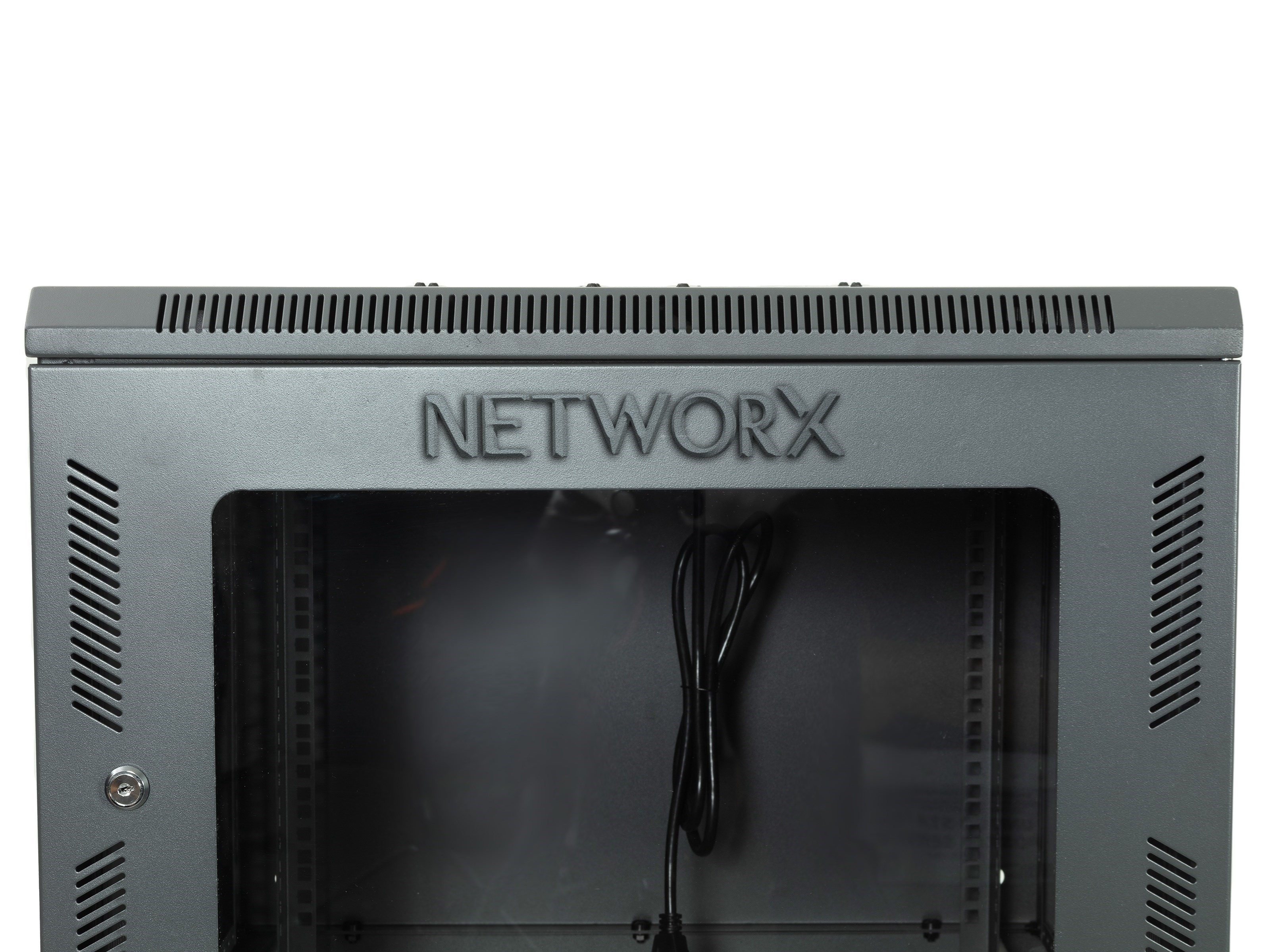

Reversible front door with tempered glass window
Removable side panels for easy access to equipment
Front and Side Panels are lockable with included set of keys
Top/Bottom/Real Knockouts for easy cable entry and exit
Supports up to 130lbs when secured properly
Flat Packed - Assembly Required

Products specifications

Rack Height (Assembled)	39.6 Inch
Manufacturer	Networx®
Color	Black
RMU	18U
Cage Nut Rails	Front & Rear
Internal Mounting Format	19"
Delivery Style	Flat Packed

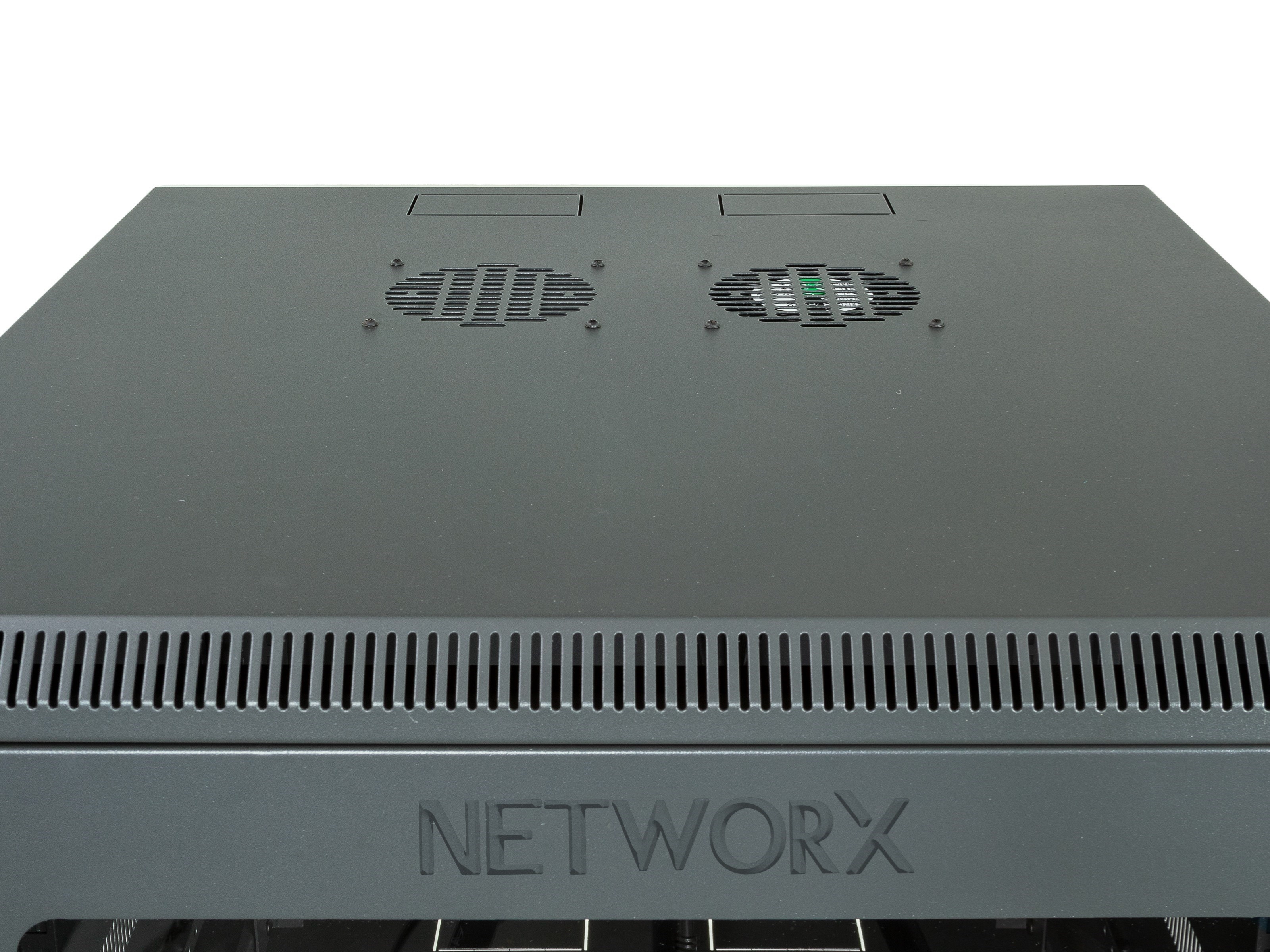

Preinstalled 80CFM 110V Fans	1
Rack Size Depth (Internal)	24" (20")
Rack Size Width (Internal)	24" (19")
Load Capacity	130 lbs
Locking Side Panels	Yes
Key Lock Set (2 Keys per Set)	1 Set
Structure & Fabrication	SPCC Cold-Rolled Steel Sheets
Reversible Front Locking Door	Tempered Glass
Vented Side Panels	Removable
Hinged Swing Out Design	No
Reinforced Door Frame	Yes
SKU	WMC-S201-18U
GTIN	00845425023162
Weight (Lbs)	75.00

Frequently asked questions

What are the external dimensions of this 201 Series 18U cabinet?

External dimensions are 39.6 inches high by 24 inches wide by 24 inches deep. The internal rack width is 19 inches and the internal usable depth is 20 inches.

Was this helpful?

How many rack units does this cabinet hold?

This cabinet provides 18U of usable rack space. Each rack unit (U) measures 1.75 inches in height, giving approximately 31.5 inches of total usable mounting space for your equipment.

Was this helpful?

What equipment fits in an 18U wall mount cabinet?

An 18U wall mount cabinet is well suited for a small server room, commercial wiring hub, or dense edge network installation. A typical configuration might include two or three 1U patch panels, multiple switches, a 1U router or firewall, a 3U UPS, a 2U NVR, and a 1U server or NAS — providing capacity for a complete small-site network stack with room for future additions.

Was this helpful?

What is the load capacity?

This cabinet is rated to hold up to 130 lbs of installed equipment, sufficient for most standard networking and AV configurations.

Was this helpful?

Does this cabinet include a cooling fan?

Yes. This cabinet includes one preinstalled 80CFM 110V fan to maintain airflow and help keep equipment temperatures in check during normal operation.

Was this helpful?

Is the front door lockable?

Yes. The clear acrylic front door is reversible and features a key lock for physical security. One key lock set with two keys is included.

Was this helpful?
